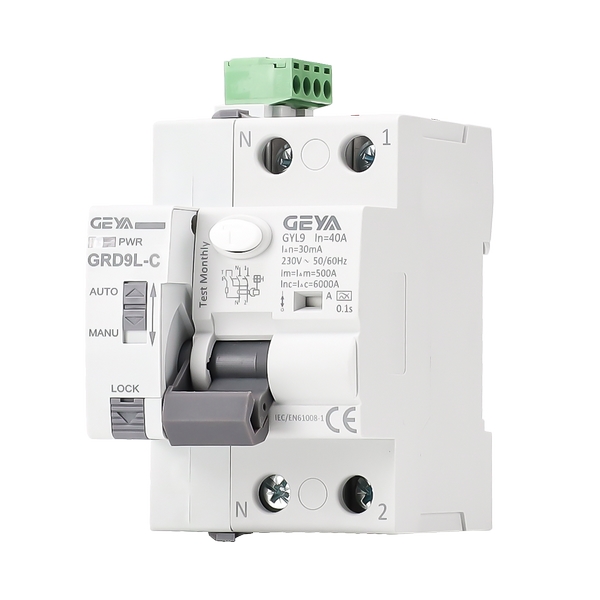

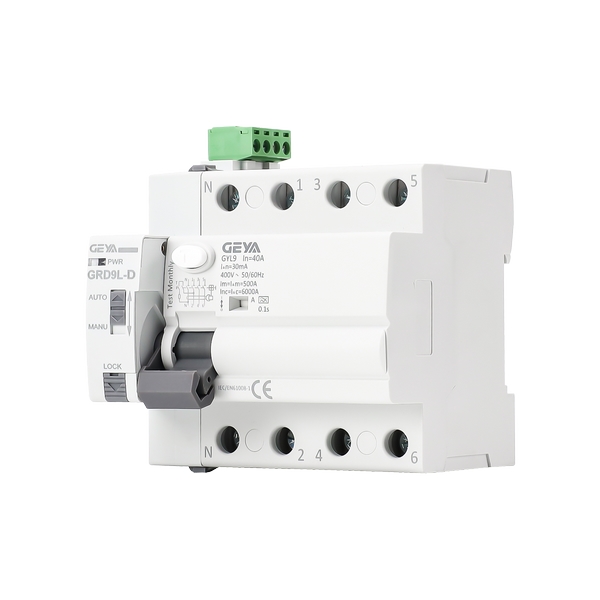

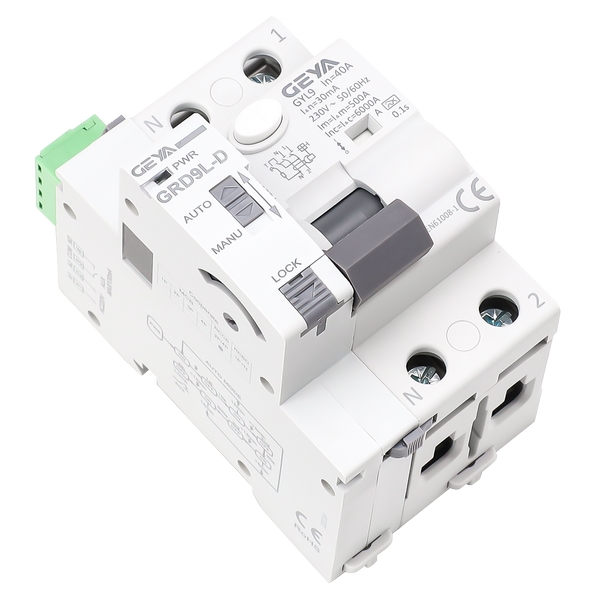

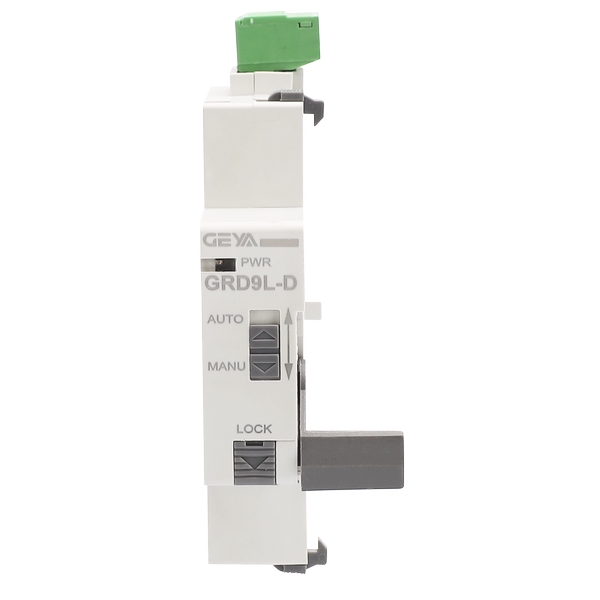

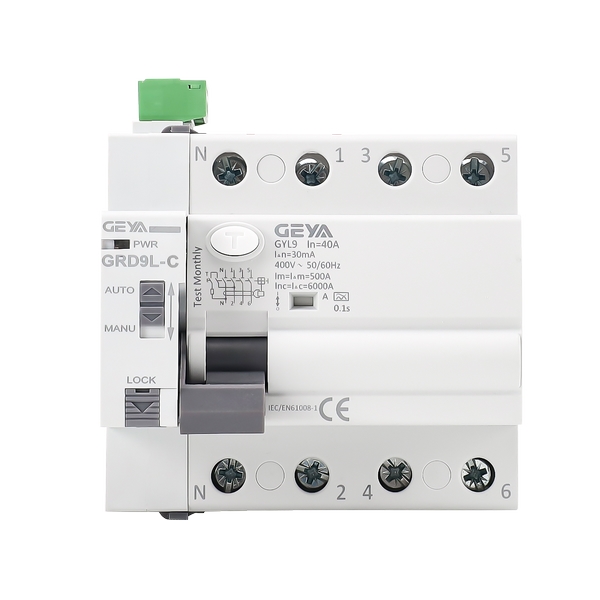

GRD9L-C/D型自動重合閘

產品介紹：GRD9L-C/D型自動重合閘，可與斷路器/漏保開關匹配，通過開關量控制斷路器/漏保開關，亦可遠程控制斷路器/漏保開關的合閘和分?jǐn)啵哂袡C(jī)械/電子雙鎖功能，可被廣泛應用于電網終端線路、新能源電路管理、智能電子三聯、智能家具、智慧工廠、新能源汽車電樁等場所。

所屬分類：自動重合閘返回上一級

價格：

促銷：

[
                                        {"產品型號": "GRD9L-C","可搭配型號": "GYM9H-1P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9H-2P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9H-3P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9H-4P"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-AC-2P（6A-63A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-AC-2P（80/100A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-AC-4P（6A-63A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-AC-4P（80/100A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-A-2P"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-A-4P"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-B-2P(6A-63A)"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-B-4P(6A-63A)"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9-B-4P(80/100A)"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9-1P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9-2P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9-3P"},{"產品型號": "GRD9L-C","可搭配型號": "GYM9-4P"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-2P-AC（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-2P-AC（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-2P-A（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-2P-A（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-4P-AC（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-4P-AC（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-4P-A（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NM-4P-A（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-2P-AC（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-2P-AC（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-2P-A（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-2P-A（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-4P-AC（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-4P-AC（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-4P-A（6A-25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYR9NE-4P-A（32-40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-2P（25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-2P（40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-2P（63A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-4P（25A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-4P（40A）"},{"產品型號": "GRD9L-C","可搭配型號": "GYL9M-A-SI-4P（63A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9H-1P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9H-2P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9H-3P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9H-4P"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-AC-2P（6A-63A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-AC-2P（80/100A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-AC-4P（6A-63A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-AC-4P（80/100A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-A-2P"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-A-4P"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-B-2P(6A-63A)"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-B-4P(6A-63A)"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9-B-4P(80/100A)"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9-1P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9-2P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9-3P"},{"產品型號": "GRD9L-D","可搭配型號": "GYM9-4P"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-2P-AC（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-2P-AC（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-2P-A（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-2P-A（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-4P-AC（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-4P-AC（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-4P-A（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NM-4P-A（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-2P-AC（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-2P-AC（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-2P-A（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-2P-A（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-4P-AC（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-4P-AC（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-4P-A（6A-25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYR9NE-4P-A（32-40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-2P（25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-2P（40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-2P（63A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-4P（25A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-4P（40A）"},{"產品型號": "GRD9L-D","可搭配型號": "GYL9M-A-SI-4P（63A）"}
                                        ]



GRD9L-C/D型自動重合閘產品特點：

1、可與斷路器/漏保開關匹配，遠程合閘和分?jǐn)鄶嗦菲?漏保開關。

2、通過開關量控制斷路器/漏保開關，D型具有自動重合功能。

3、帶手動/自動選擇開關。

4、具有機械/電子雙鎖功能。

5、可以更改手柄以匹配斷路器/漏保開關。

6、可以搭配其它配件。

7、工作狀態由LED指示。

8、操作機構僅18mm寬度。

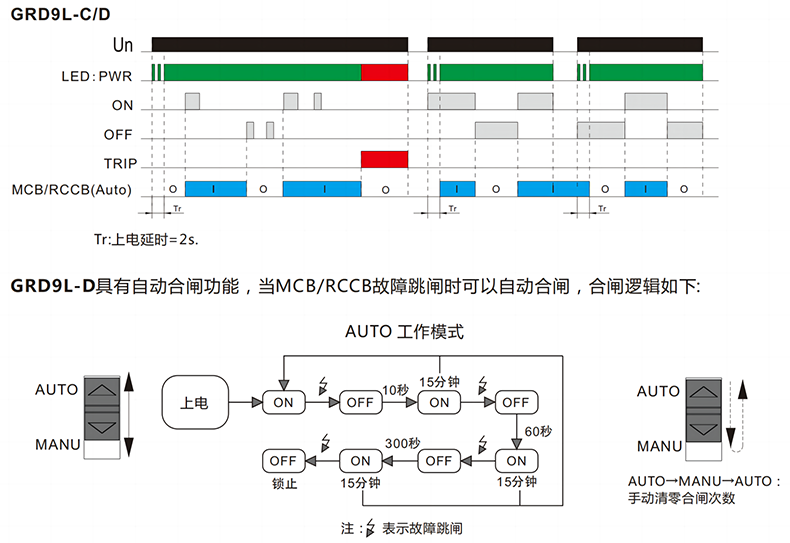

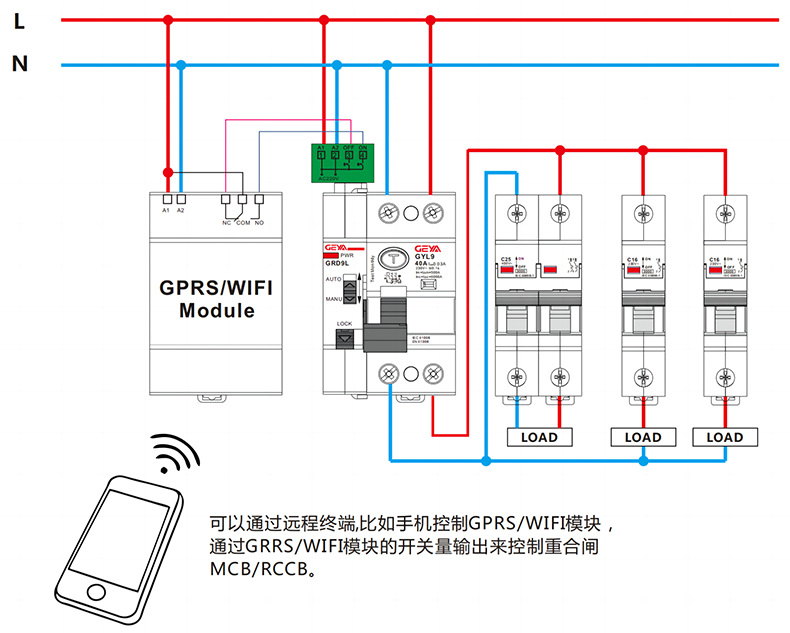

GRD9L-C/D型自動重合閘應用場合：

可廣泛應用于電網終端線路，新能源電路管理，智能電子三聯，智能家居，智慧工廠，新能源汽車充電樁

等。

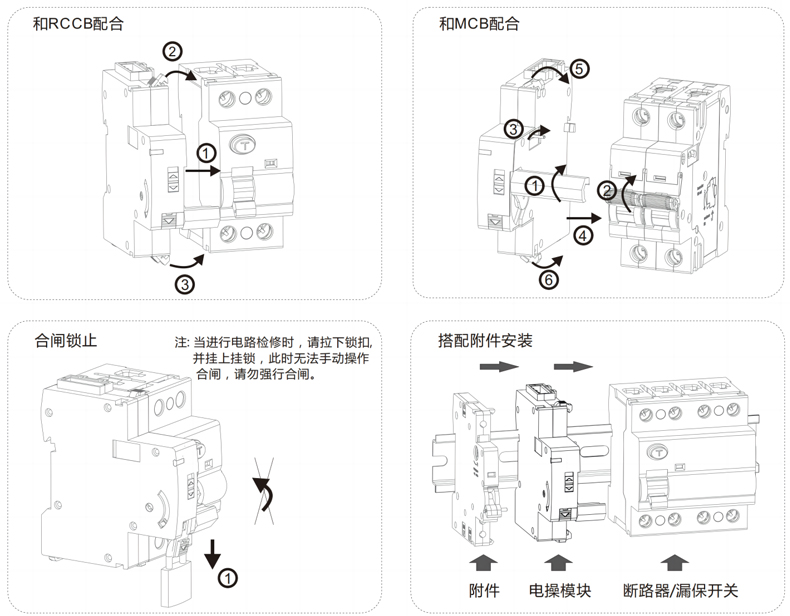

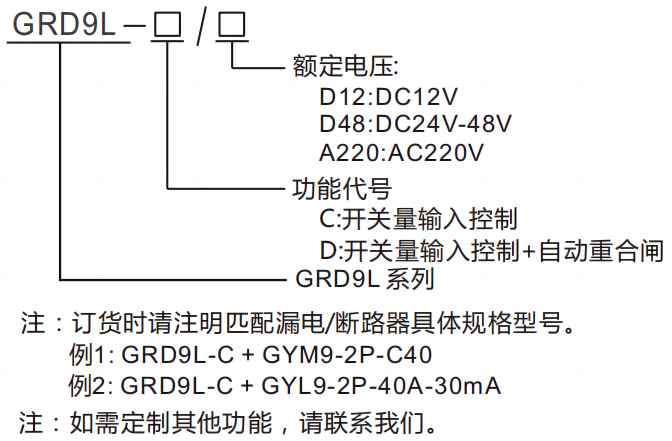

GRD9L-C/D型自動重合閘型號及含義：

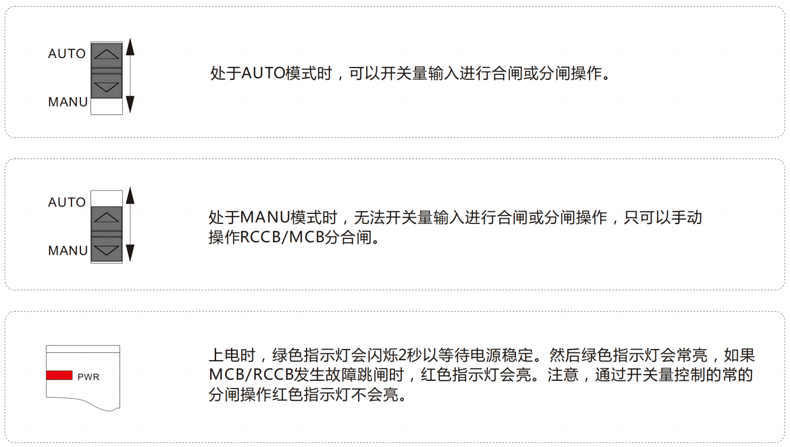

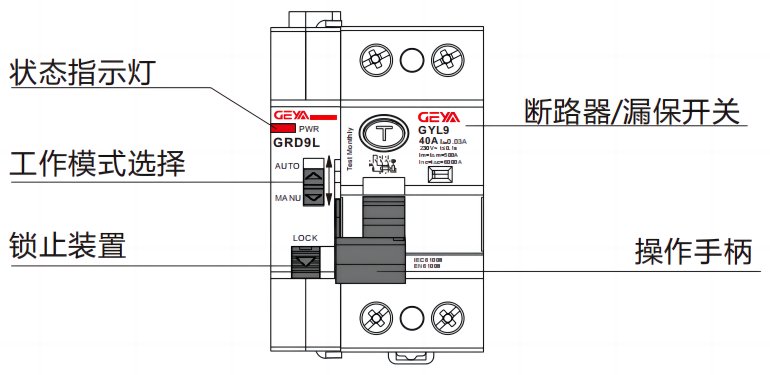

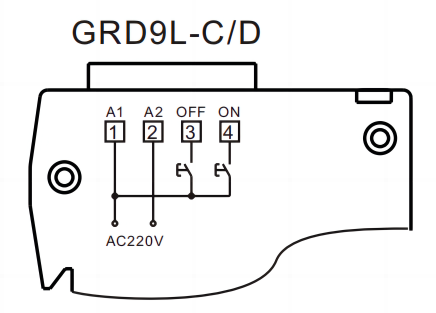

GRD9L-C/D型自動重合閘面板指示：



GRD9L-C/D型自動重合閘技術參數：

	GRD9L-C	GRD9L-D
控制方式	開關量輸入控制	開關量輸入控制+自動重合閘
電源端子	A1-A2
額定電源電壓	DC12V,DC24V-48V
功耗	DC max.1W(待機) max.20W (動作)
額定電源電壓	-10%;+10%
電壓波動范圍	AC220V(50-60Hz)
功耗	AC max.1VA(待機)max.20VA (動作)
電壓波動范圍	-10%;+10%
指示燈	紅綠雙色LED
動作時間	≤1s
自動重合閘次數	無	3次
自動重合閘時間	無	10秒-60秒-300秒；
合閘次數清零	無	合閘成功后15分鐘內不在跳閘或手動清零
機械壽命	10000次
電壽命	4000次
工作環境溫度	-20℃ to+55℃(-4F to 131F)
存儲和運輸環境溫度	-35℃ to+75℃(-22F to 158F)
安裝方式	卡軌安裝EN/IEC 60715
防護等級	IP20
安裝位置	任意
過壓等級	III.
污染等級	2

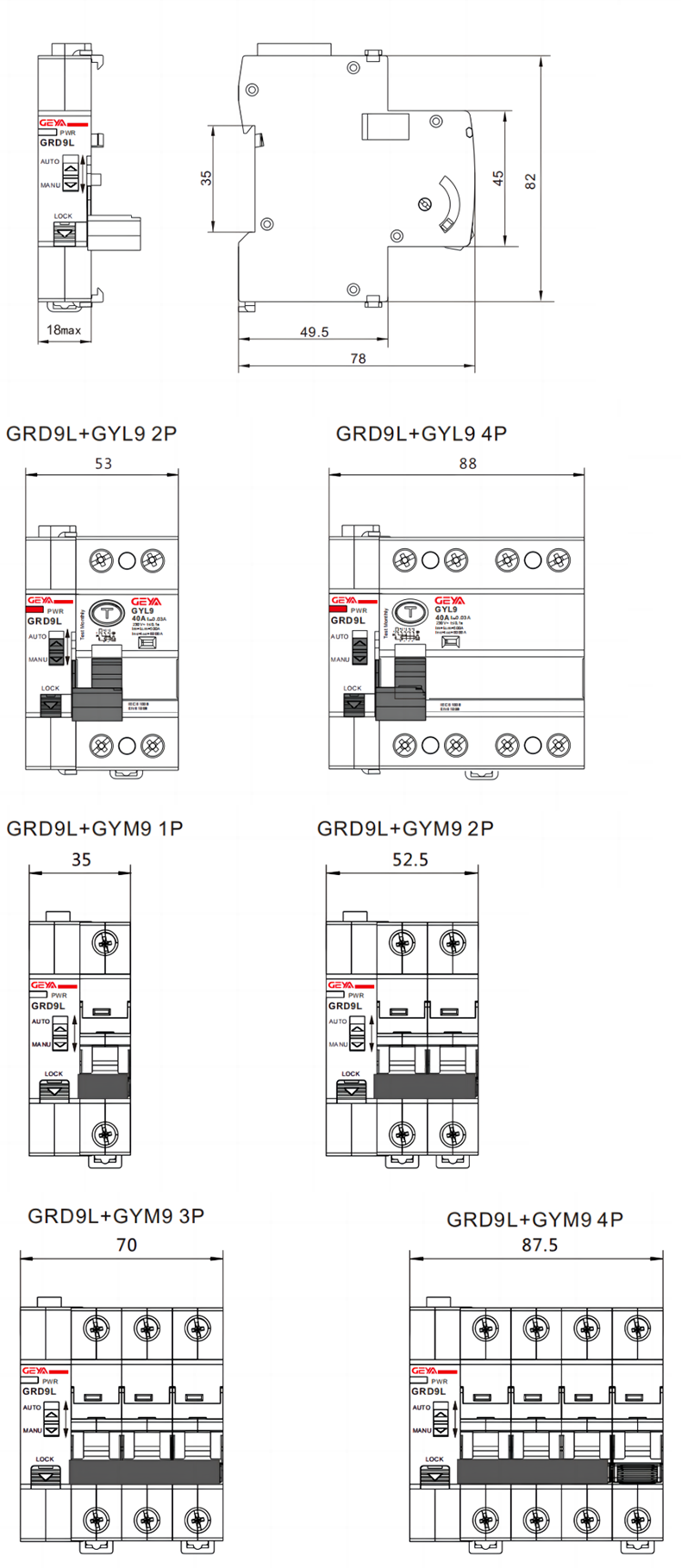

接線能力	82×18×78mm
外形尺寸	1×2.5mm2or2×1.5mm22
重量	80g

GRD9L-C/D型自動重合閘故障處理：

序號	故障描述	解決辦法
1	無法合閘或分閘	1、請確認電源電壓是否正常。 2、請確認工作模式是否設定在AUTO模式。 3、請確認電操機構和斷路器/漏電開關的安裝卡扣是否卡到位。
2	合閘后馬上跳閘	1、請檢查線路，確認斷路器/漏電開關下端是否有過載\短路\漏電故障。 2、斷路器是否損壞，滑扣。
